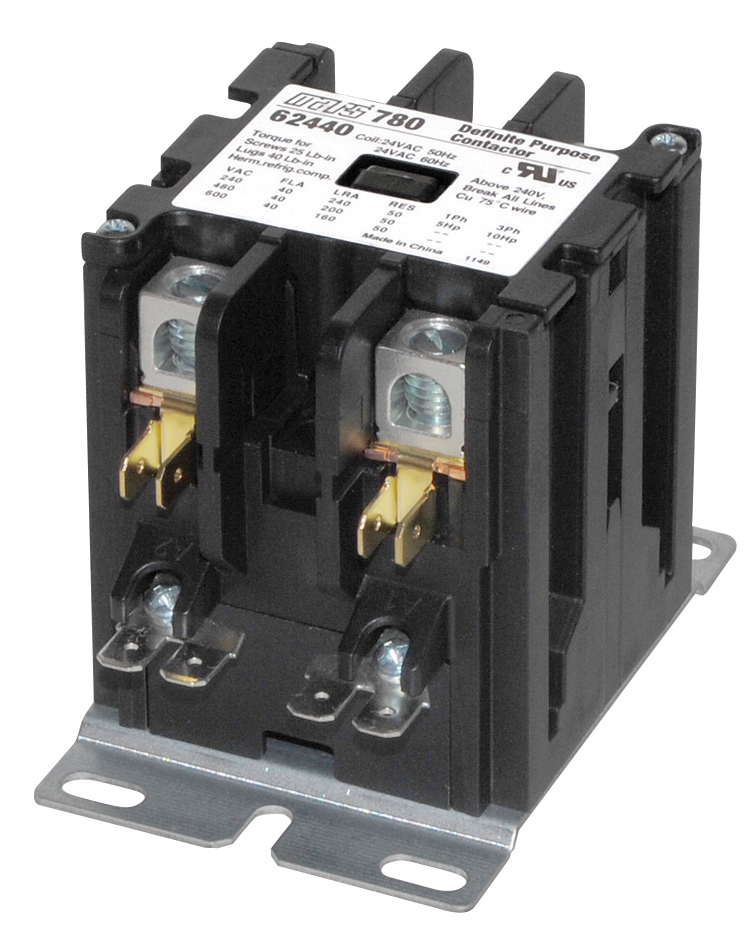

> 2P 40A 24V LG BDY BL A2L
Designed for use on refrigeration, air conditioning and electric heating systems Engineered for today's most demanding commercial refrigeration and HVAC applications Enclosed body provides a quieter running contactor and a longer life expectanc Oversized Arch Window to simplify wiring High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires Removable Coils allow field replacement of damaged coils Removable Cover provides full access to the contacts Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity A2L Compliant design
2P 40A 24V LG BDY BL A2L
Contactor Type
Definite Purpose
No. of Poles
2
FLA Inductive
40
FLA Resistive
50
Coil Voltage
24
A2L Compliance
A2L Compliant
Lug or Screw Terminal
Box Lugs
Standards
UL
Coil Hz.
50/60
Item #:
62440
Contactors
Contactor Type
Definite Purpose
No. of Poles
2
FLA Inductive
40
FLA Resistive
50
Coil Voltage
24
A2L Compliance
A2L Compliant
Lug or Screw Terminal
Box Lugs
Standards
UL
Coil Hz.
50/60
